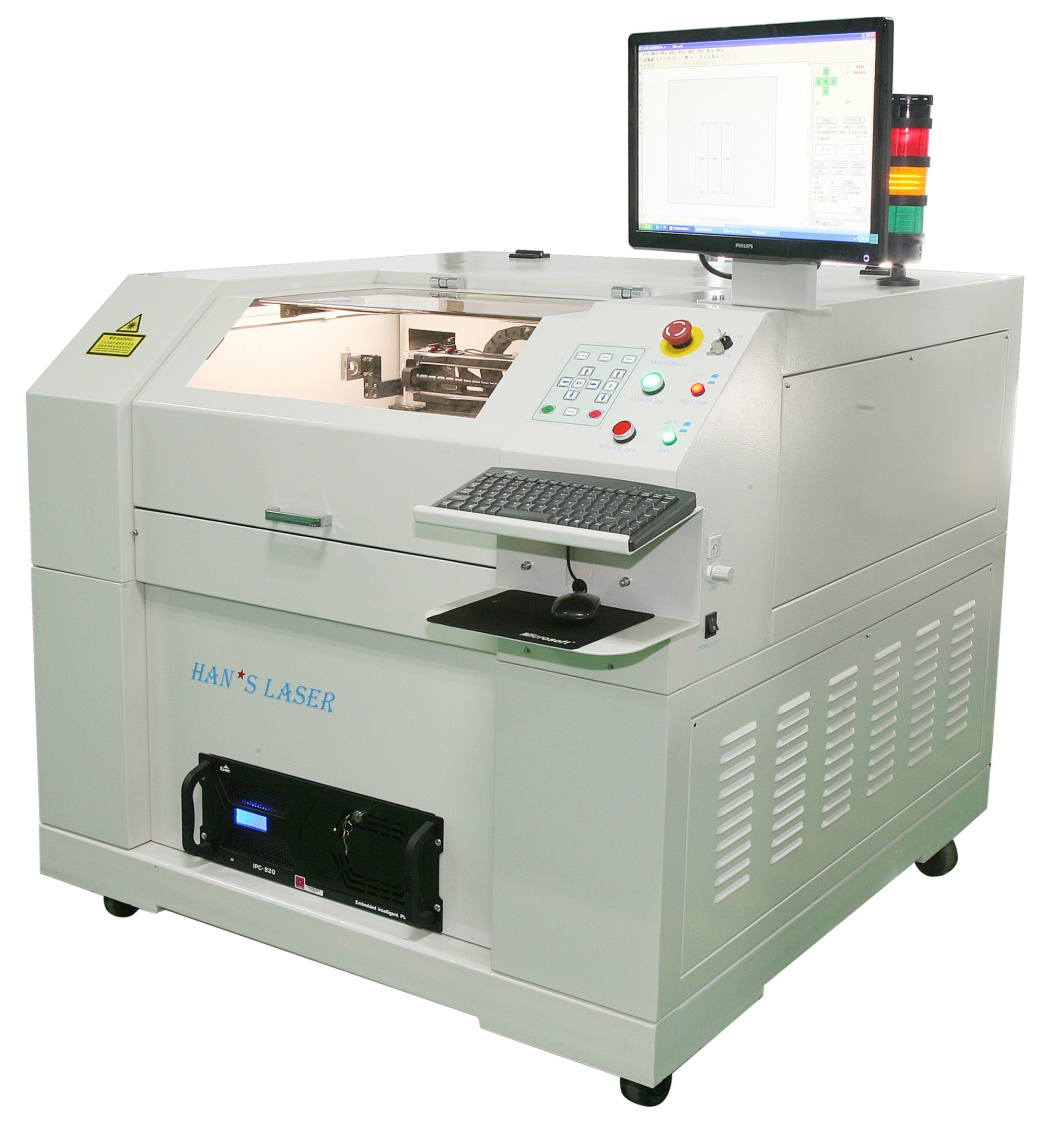

P5060-CO2-100 Laser Precision Cutting Machine
With a fully enclosed processing area, the P5060 CO2 laser cutters is the perfect tool for engraving and cutting of your favorite designs in acrylic, wood, silicone, PCB, plastic，rubber stamps，leather，glass and many more non-metal materials. Equipped with a CCD camera vision system, precise positioning and cutting is easily achieved to satisfy your customer’s needs. Onsite installation and training plus one year warranty. Excellent cutting results for high precision consumer electronics such as mobile phone enclosures, keypads, touch screen displays etc.PCB circuit board, PC panel, acrylic shell and rear-projection panel cutting. Precision insulated electrical FPC flexible board cutting. Cures some materials that are easy to generate smoke such as buttons made from resin material. Touch screen and cover films, suitable for wearable industry and other non-metallic materials requiring 2D precision cutting.
Features
+CO2 laser machines function by essentially bouncing light emissions between mirrors until the beam is strong enough to penetrate a partially transparent mirror at the tip of the laser head.
+Imported optical elements are adopted
+A waste collection box for easy waste cleaning
+HAN's LASER Independently developed cutting software ;
+Imported metal RF laser tube, excellent beam quality, long life, high stability;
+These machines, which provide excellent value for the price, can engrave complex designs quickly and accurately while leaving behind minimal dust.
|
|
P5060-CO2-100 Laser Precision Cutting Machine
With a fully enclosed processing area, the P5060 CO2 laser cutters is the perfect tool for engraving and cutting of your favorite designs in acrylic, wood, silicone, PCB, plastic，rubber stamps，leather，glass and many more non-metal materials. Equipped with a CCD camera vision system, precise positioning and cutting is easily achieved to satisfy your customer’s needs. Onsite installation and training plus one year warranty. Excellent cutting results for high precision consumer electronics such as mobile phone enclosures, keypads, touch screen displays etc. PCB circuit board, PC panel, acrylic shell and rear-projection panel cutting. Precision insulated electrical FPC flexible board cutting. Cures some materials that are easy to generate smoke such as buttons made from resin material. Touch screen and cover films, suitable for wearable industry and other non-metallic materials requiring 2D precision cutting.
Features
+CO2 laser machines function by essentially bouncing light emissions between mirrors until the beam is strong enough to penetrate a partially transparent mirror at the tip of the laser head.
+Imported optical elements are adopted
+A waste collection box for easy waste cleaning
+HAN's LASER Independently developed cutting software ;
+Imported metal RF laser tube, excellent beam quality, long life, high stability;
+These machines, which provide excellent value for the price, can engrave complex designs quickly and accurately while leaving behind minimal dust.
|
Application and Samples
Cutting for requirements with high precise consumer electronics industries,such as mobile shell,keypad sprue,touch screen,display conductive coating,display panel,and etc.
•PCB circuit board,PC panel,acrylic shell and rear-projection panel cutting.
•High precise electrical insulated soft board cutting.
•Curing some other materials which easy to generate smoke,such as button made frome resin material.
•Touch screen and cover FILM,wearable industry, and other non-metallic materials plane 2d precision cutting.
•PCB circuit board,PC panel,acrylic shell and rear-projection panel cutting.
•High precise electrical insulated soft board cutting.
•Curing some other materials which easy to generate smoke,such as button made frome resin material.
•Touch screen and cover FILM,wearable industry, and other non-metallic materials plane 2d precision cutting.
Metal cutting
Metal cutting
Metal cutting
Metal cutting
Metal cutting
Options and Accessories
The E-RJC-100 Rotary indexer is particularly design for the surface engraving of ring.
Conveyor belt,stainless steel frame, adjustable speed for laser coding various product.
X, Y adjustable worktable to make a quick positioning
Technical Specs
| Laser type | CO2 | |
| Optional laser power | 100w | |
| Work piece size accuracy |
|
Brief Laser Cutting Principle & Applications:
Laser cutting is the process of cutting material by means of electron discharge as the energy source.

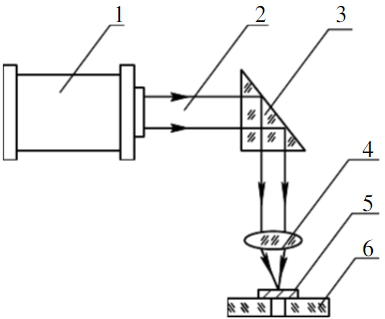

The following diagram describe the principle of Laser cutting Succinctly.P5060 Series Laser Cutter
applications: wood, conductive film, paper, acrylic board and PET film.Laser cutting technology is an
ideal solution for modern factories to improve cutting technology, and also an ideal way for family
workshops to enter into modern processing industry.
The following diagram describe the principle of Laser cutting Succinctly.P5060 Series Laser Cutter
applications: wood, conductive film, paper, acrylic board and PET film.Laser cutting technology is an
ideal solution for modern factories to improve cutting technology, and also an ideal way for family
workshops to enter into modern processing industry.
1—Laser tube
2—Laser beam
3—Total reflector
4—Focusing Lens
5—Product
6—Workbench
Specification sheet:
| Model | P5060-CO2-100 |
| Laser power | CO2：100W |
| X/Y axis travel | 24" x20"(600x500mm) |

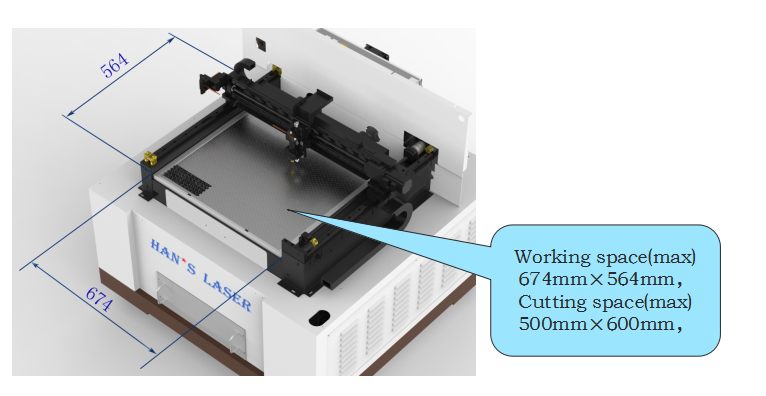

| Maximum placement of workpiece |
23" x27" x6" (564mm×674mmx140mm) |
| Processing effective area |
24" x20"(600x500mm) (standard) |
| Transmission structure |
Servo motor ， precision screw， Precision guide rail |
| Machine speed |
0～20 inch / sec (0～500mm/ sec) |
| Actual cutting speed (mm/ sec) |
According to the material and laser. |
| Machine repeatability | ≤±0.0004" (≤±0.01mm) |
| Machine positioning accuracy | ≤±0.0008" (≤±0.02 mm) |
| Workpiece dimension accuracy | ≤±0.002" (≤±0.05mm)(Related to the cutting material.) |
List of Machine Component
|

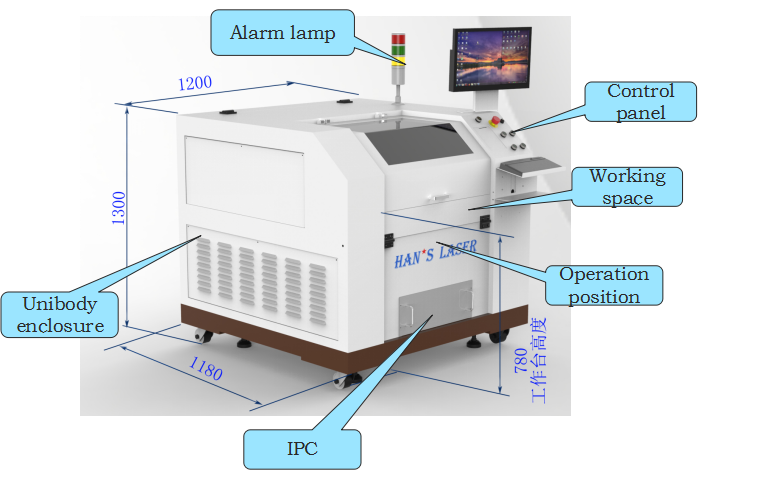

Machine Outline Size(Fyi.)
