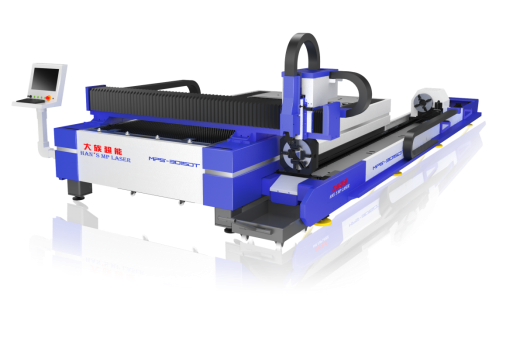

MPS3015DT Tube&Sheet in one cutting machine
A new multi-purpose laser cutting machine designed to process sheet metal and tube with IPG laser source.
User-friendly interface and software. It is widely used for cutting various sheet and tube-shaped products in metal fabrication industries, such as fitness equipment, oil pipelines, architectural, automotive, farm equipment, aircraft, marine, electronics, lighting, sign industry, and various metal processing industries.
Features
+Flat cutting is mainly used for cutting carbon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, galvanized sheet, brass, copper and other metal materials.
+Pipe cutting mainly used for carbon steel, stainless steel round pipe and square pipe cutting.
+It can solve the cutting scheme of a multi-type workpiece and enrich the function of the equipment.
+Advanced pneumatic control system design, supporting imported pneumatic components, customers can freely choose three kinds of cutting auxiliary gas according to needs, to ensure the cutting quality, at the same time, effectively reduce the cost of use.
+Imported servo motor dual drive precision reducer, rack, and pinion structure ensure the high speed, high precision and reliable operation of the equipment.
+It adopts Han’s Laser control system, which has been used and optimized in the field of laser cutting for many years and has the characteristics of high reliability and humanized operation.
|
|
MPS3015DT Tube&Sheet in one cutting machine
A new multi-purpose laser cutting machine designed to process sheet metal and tube with IPG laser source. User-friendly interface and software. It is widely used for cutting various sheet and tube-shaped products in metal fabrication industries, such as fitness equipment, oil pipelines, architectural, automotive, farm equipment, aircraft, marine, electronics, lighting, sign industry, and various metal processing industries. Features +Flat cutting is mainly used for cutting carbon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, galvanized sheet, brass, copper and other metal materials. +Pipe cutting mainly used for carbon steel, stainless steel round pipe and square pipe cutting. +It can solve the cutting scheme of a multi-type workpiece and enrich the function of the equipment. +Advanced pneumatic control system design, supporting imported pneumatic components, customers can freely choose three kinds of cutting auxiliary gas according to needs, to ensure the cutting quality, at the same time, effectively reduce the cost of use. +Imported servo motor dual drive precision reducer, rack, and pinion structure ensure the high speed, high precision and reliable operation of the equipment. +It adopts Han’s Laser control system, which has been used and optimized in the field of laser cutting for many years and has the characteristics of high reliability and humanized operation. |
Application and Samples
Suitable for sheet metal processing, oil pipelines, kitchen appliances, sheet metal chassis, elevator manufacturing, electrical equipment, fitness equipment, engineering machinery, home manufacturing, automotive, agricultural machinery and various metal products processing industries.
Metal cutting
Metal cutting
Metal cutting
Metal cutting
Metal cutting
Options and Accessories
The E-RJC-100 Rotary indexer is particularly design for the surface engraving of ring.
Conveyor belt,stainless steel frame, adjustable speed for laser coding various product.
X, Y adjustable worktable to make a quick positioning
Technical Specs
| Model | MPS-3015DT | MPS-4020DT | |
| Fiber laser source | Laser source power(optional) | IPG: 500W-3000W | IPG: 500W-3000W |
| SPI: 500W-3000W | SPI: 500W-3000W | ||
| Process area | Processing area(L*W) |
118.11" x 59.05" (3000mm x 1500mm) |
157.48" x 78.74" (4000mm x 2000mm) |
| X axis track | 94.48"(2400mm) | 110.23"(2800mm) | |
| Y axis track | 118.11"(3000mm) | 157.48"(4000mm) | |
| Z axis track | 11.81"(300mm) | 11.81"(300mm) | |
| W axis track | Rotation axis | Rotation axis | |
| Push track | 118.11"or 236.22"(3000mm or 6000mm) | 118.11"or 236.22"(3000mm or 6000mm) | |
| Clamping range | Round pipe1"≤φ≤6"(25mm≤φ≤150mm) | 1"≤φ≤6"(25mm≤φ≤150mm) | |
| Square pipe1"≤□≤4"(□25-□100mm) | Square pipe1"≤□≤4"(□25-□100mm) | ||
| Tube | wall thickness range | 0.02"-0.2" ( 0.5-5mm )carbon tube&stainless steel tube | 0.02"-0.2" ( 0.5-5mm )carbon tube&stainless steel tube |
| Accuracy | X、Y axis location accuracy | ±0.00196"/m (±0.05mm/m) | ±0.00196"/m (±0.05mm/m) |
| X、Y axis repeat location accuracy | ±0.00118"/m (±0.03mm/m) | ±0.00118"/m (±0.03mm/m) | |
| Speed | X、Y axis max location speed | 132 ft/min(40m/min) | 132 ft/min(40m/min) |
| X、Y axis max acceleration | 0.3G | 0.3G | |
| Power parameters | Phrase | 3 | 3 |
| Voltage | 380V | 380V | |
| Frequency | 50Hz/60Hz | 50Hz/60Hz | |
| IP degree | IP54 | IP54 | |
| Weight & Size | Max load of worktable | 2200 LBS( About 1000kg) | 2750 LBS(About 1250kg) |
| Max load of tube cutting worktable | 440 LBS(About 200kg) | 440 LBS(About 200kg) | |
| Machine Tool Weight | 4.5T | 6.5T | |
| Dimension(L*W*H) |
(8200mm*4000mm*1900mm) 322.83" x 157.48 " x 74.8 " |
(8300mm*4300mm*1900mm) 328" x 169.29 " x 74.8 " |
|
