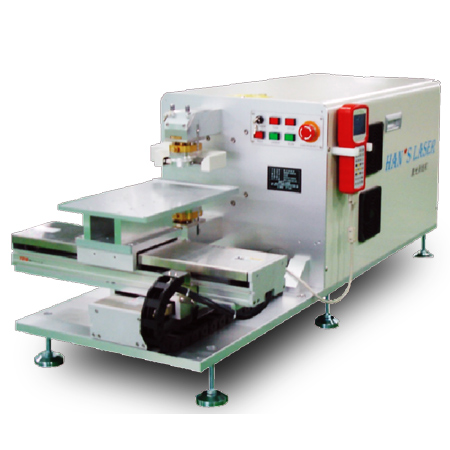

Fiber（CO2） Laser Stripping & Cutting Machine
A turnkey laser wire stripping and cutting system. Laser type(Laser Wavelength)is optional to remove different kinds of insulation and shield from cable and wire with a PLC controller / PC.
Suitable for the stripping of data cable below 5mm, small wire, flat wire, coaxial wire, single wire, double glue wire, multi-layer wire, etc.; We have Fiber laser series for Tinning shield, Aluminum foil shield, Copper foil Mylar, etc. We have CO2 laser series for Stripping of non-metallic materials such as wire jacket and insulation, including vinyl chloride, glass fiber, polyester, polyester film, fluoride, nylon, polyethylene, tantalum resin, aluminum foil, Teflon and others Hardness or high-temperature insulation materials, etc.
Galvanometer scanner stripping and Nozzle type are available to meet your productivity requirement.
Please contact Han’s Laser for more information.
Features
+Module design, easy set up on any production line integration.
+Servo motor, high precision process.
+User-friendly software.
|
|
Fiber（CO2） Laser Stripping & Cutting Machine
A turnkey laser wire stripping and cutting system. Laser type(Laser Wavelength)is optional to remove different kinds of insulation and shield from cable and wire with a PLC controller / PC.
Suitable for the stripping of data cable below 5mm, small wire, flat wire, coaxial wire, single wire, double glue wire, multi-layer wire, etc.; We have Fiber laser series for Tinning shield, Aluminum foil shield, Copper foil Mylar, etc. We have CO2 laser series for Stripping of non-metallic materials such as wire jacket and insulation, including vinyl chloride, glass fiber, polyester, polyester film, fluoride, nylon, polyethylene, tantalum resin, aluminum foil, Teflon and others Hardness or high-temperature insulation materials, etc. Galvanometer scanner stripping and Nozzle type are available to meet your productivity requirement. Please contact Han’s Laser for more information.
Features
+Module design, easy set up on any production line integration. +Servo motor, high precision process. +User-friendly software. |
Application and Samples
UV Laser De-coating
UV Laser De-coating
UV Laser De-coating
Options and Accessories
The E-RJC-100 Rotary indexer is particularly design for the surface engraving of ring.
Conveyor belt,stainless steel frame, adjustable speed for laser coding various product.
X, Y adjustable worktable to make a quick positioning
Technical Specs
| Laser Type | Fiber Laser |
| Wavelength | 1064 nm (nominal) |
| Min Beam Diameter | < 30 µm |
| Pulse width | 200ns |
| Pulse Frequency | 20 - 200 kHz |
| Output Power | 10 - 100 Watts |
| Repetition accuracy | ±0.02mm |
| Cooling System | Fully air cooled, heat-sink |
| Operation system |
PLC or WINDOWS 7 / 10 |
| Electrical Connection |
110 - 230 V (± 10%) 10 A, 50/60 Hz |
| Power consumed | 1KW |
| Stroke(X, Y) |
400mm x 200mm /200mm x 100mm |
|
Warranty Coverage (Parts & Labor) |
As Quoted |
| Laser Safety Compliance | FDA |
| Running temperature |
15℃-35℃ |
