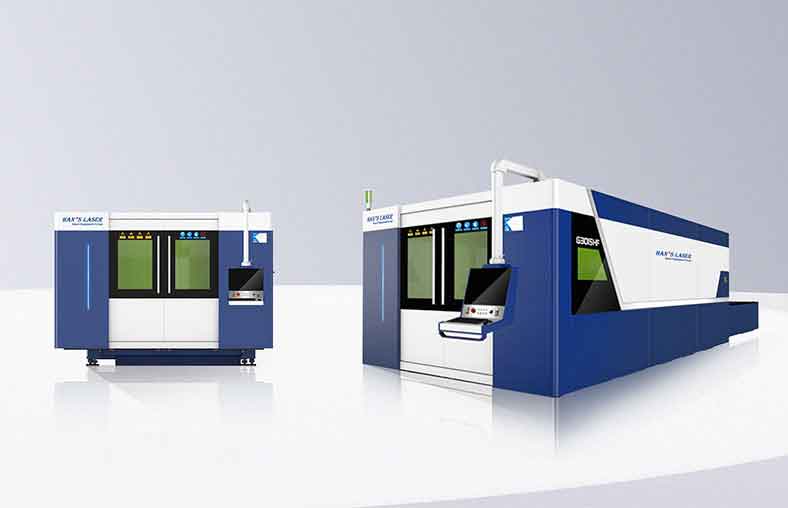

G3015HF Fiber Laser Cutting Machine
G3015HF fiber laser cutting machine is a mature product which is first created in China and has reached the leading international level.
G3015HF machine tool, the dynamic performance of the beam is rising. The maximum positioning speed is up to 200m/min. The acceleration of the X/Y axis is up to 2.8G by double drive acceleration.
Features ＋“Flying” cutting speed, excellent stability, high-quality cutting edge, and extreme cost efficiency. ＋Particular cutting technologies: Flying cutting, Zero-Seconds Piercing, Air-supported cutting technique. ＋Processing materials: Mild steel, Stainless steel, Copper, Brass, Aluminum, Electrical steel. ＋Max sheet metal thickness: 0.5-20mm Mild steel, 0.5-12mm Stainless steel, 0.5-10mm Aluminum, 0.5-8mm Copper. |
Application and Samples
G3015HF is flexible to any of your cutting requests; the machine consumes less to manufacture more.
G3015HF fiber laser cutting machine could be approached in many industries such as transportation, shipbuilding, electricity, agriculture, automobile, customer electricity, petroleum, kitchen & cookware, machinery, metal processing, industrial construction, etc.
G3015HF fiber laser cutting machine could be approached in many industries such as transportation, shipbuilding, electricity, agriculture, automobile, customer electricity, petroleum, kitchen & cookware, machinery, metal processing, industrial construction, etc.
Metal cutting
Metal cutting
Metal cutting
Metal cutting
Metal cutting
Options and Accessories
Air-supported Stainless Steel Cutting-
There is no need for consuming assist gas in stainless steel cutting, the new technology consumes less but offers a better cutting quality. The air-supported cutting technology ensures high-speed but better cutting quality cutting outcomes for stainless cutting, compared with stainless cutting supported by nitrogen and oxygen.
Flying Cutting-
The flying cut technique is a high-speed laser cutting technique for mass production of the single profile. During the manufacturing process, the laser head remains a stable height to processing material in case time wasting on the switch of non-processing and processing status during laser head process on the irregular surface.
There is no need for consuming assist gas in stainless steel cutting, the new technology consumes less but offers a better cutting quality. The air-supported cutting technology ensures high-speed but better cutting quality cutting outcomes for stainless cutting, compared with stainless cutting supported by nitrogen and oxygen.
Flying Cutting-
The flying cut technique is a high-speed laser cutting technique for mass production of the single profile. During the manufacturing process, the laser head remains a stable height to processing material in case time wasting on the switch of non-processing and processing status during laser head process on the irregular surface.
The E-RJC-100 Rotary indexer is particularly design for the surface engraving of ring.
Conveyor belt,stainless steel frame, adjustable speed for laser coding various product.
X, Y adjustable worktable to make a quick positioning
Technical Specs
| Model | G3015HF |
| Processing area | 3000mm x 1500mm |
| X-axis track | 3050mm |
| Y-axis track | 1525mm |
| Z-axis track | 120mm |
| X, Y axis positioning accuracy | ±0.03mm/m |
| X, Y, axis repeat positioning accuracy | ±0.02mm |
| X/Y axis max. positioning speed | 200m/min |
| X,Y axis max. acceleration | 2.8G |
