LASER WELDING MACHINES

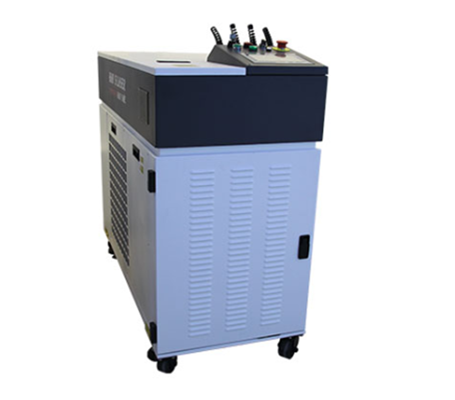

     Green YAG Laser Welder - PG3

The PG3 is a wide pulse green laser with a fiber-coupled output. Thanks to its small beam diameter, superior beam quality, and short focal length, the PG3 produces uniform depth and consistent welding on highly reflective metals such as gold, silver, and copper without splash.

Features

＋532nm wavelength green laser.

＋Peak pulse power up to 1kW.

＋Shorter wavelength with superior better beam quality compared to traditional 1064nm near-infrared laser.

＋Recommended for reflective difficult to weld metals such as gold, silver, and copper without the splash.

＋Produces uniform depth and smooth welding on highly reflective materials.




Green YAG Laser Welder - PG3

The PG3 is a wide pulse green laser with a fiber-coupled output. Thanks to its small beam diameter, superior beam quality, and short focal length, the PG3 produces uniform depth and consistent welding on highly reflective metals such as gold, silver, and copper without splash.

Features
＋532nm wavelength green laser.

＋Peak pulse power up to 1kW.

＋Shorter wavelength with superior better beam quality compared to traditional 1064nm near-infrared laser.

＋Recommended for reflective difficult to weld metals such as gold, silver, and copper without the splash.

＋Produces uniform depth and smooth welding on highly reflective materials.



Application and Samples
High-reflection materials such as copper, aluminum, gold, silver; Medical device; Mobile phone parts; Electronic components; Jewelry.
Laser welding metal
Laser welding metal
Laser welding metal-pg3
Laser welding metal
Laser welding metal
Laser welding metal-pg3
Options and Accessories
The E-RJC-100 Rotary indexer is particularly design for the surface engraving of ring.
Conveyor belt,stainless steel frame, adjustable speed for laser coding various product.
X, Y adjustable worktable to make a quick positioning
Technical Specs
Model PG3
Laser Type YAG
Wavelength (nm) 532
Average Ouput Power (W) 3
Peak Pulse Power (KW) 1
Maximum Pulse Energy (J) 3
Laser Welding Frequency (HZ) 0~10
Laser Pulse Width (ms) 5
Cooling System Air Cooling
Power Input 220v/25A
50/60Hz
Power consumption (KW) 5
