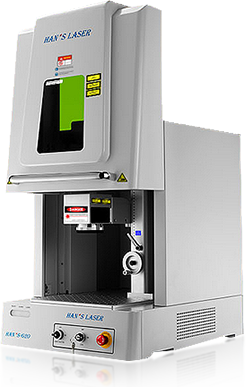

Tabletop MOPA Fiber Laser Marker- G20

G20 uses a state-of-the-art MOPA fiber laser to compose a high-quality laser beam to scan and mark without contacting or damaging the substrate.

It is a compact, turnkey laser marking and engraving system. Use a primary laptop computer with user-friendly software to adjust laser pulse frequency and laser power for marking, deep laser engraving and cutting.

Suitable materials can be mostly metals and non-metals.

Available to work with a rotary indexer for seamless laser marking on the surface of cylinder.

Features

＋The heat affected zone and material deformation are small.

＋Life of a laser generator can reach up to approximately 100,000hours.

＋Low running cost, the virtually maintenance-free laser system help minimize resource consumption.

＋Support CAD file(DXF), PLT/BMP/JPG/AI format.

＋Support 1D, 2D bar code, GS1 code, Series numbers, Batch number, Logo, Company information marking.

＋Laser marking software could be customized to meet the customer's unique demand.

＋The software supports Serial Port and TCP/IP communication with the client-server.

G20 uses a state-of-the-art MOPA fiber laser to compose a high-quality laser beam to scan and mark without contacting or damaging the substrate.

Suitable materials can be mostly metals and non-metals.

Available to work with a rotary indexer for seamless laser marking on the surface of cylinder.

Features

＋The heat affected zone and material deformation are small.

＋Life of a laser generator can reach up to approximately 100,000hours.

＋Low running cost, the virtually maintenance-free laser system help minimize resource consumption.

＋Support CAD file(DXF), PLT/BMP/JPG/AI format.

＋Support 1D, 2D bar code, GS1 code, Series numbers, Batch number, Logo, Company information marking.

＋Laser marking software could be customized to meet the customer's unique demand.

＋The software supports Serial Port and TCP/IP communication with the client-server.

Application and Samples

Mostly used in integrated Circuit Chips marking, Computer Accessories marking, Industrial Machinery marking, Watches marking, Electronic and Communication products marking, Aerospace devices marking, various Automotive parts marking, Home Appliances marking, Hardware Tools marking, Molds engraving, Wire and Cable marking, Food packaging marking, Jewelry marking and engraving, Tobacco and Military industry design.
Marking materials are respectively applied to Iron, Copper, Ceramic, Magnesium, Aluminum, Gold, Silver, Titanium, Platinum, Stainless Steel, Titanium Alloy, Aluminum Alloy, High Hardness Alloy, Oxide, Electroplating, coating, ABS, Epoxy Resin, Ink, Engineering,Plastic, etc.

laser marking- fiber

Options and Accessories

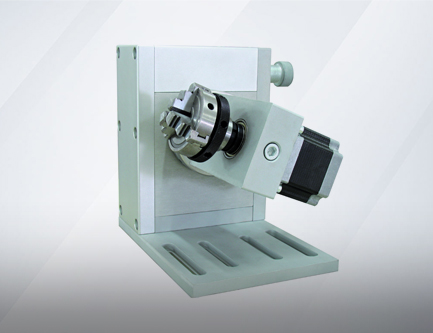

The E-RJC-100 Rotary indexer is particularly design for the surface engraving of ring.

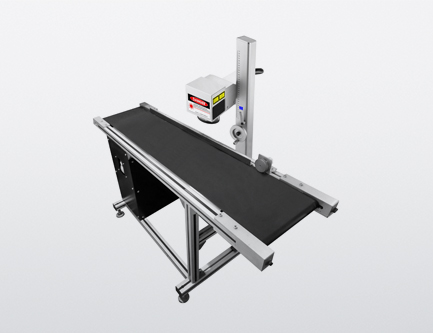

Conveyor belt,stainless steel frame, adjustable speed for laser coding various product.

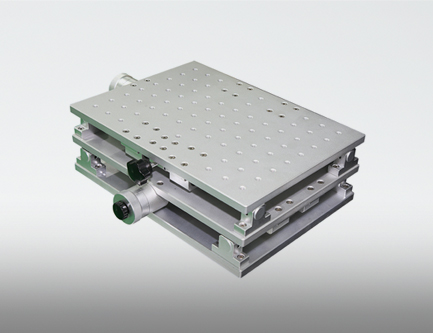

X, Y adjustable worktable to make a quick positioning

Technical Specs

Laser Type	MOPA Fiber Laser
Wavelength	1064 nm (nominal)
Min Beam Diameter	< 30 µm
Pulse width adjustment ranges	4ns ,8ns ,14ns ,20ns,30ns, 50ns,100ns,200ns
Pulse Frequency	1.5 - 1000 kHz
Output Power	10 - 100 Watts
Repetition accuracy	±0.003mm
Cooling System	Fully air cooled, heat-sink
Marking Field Size	Variable(F100, F160, F254,F430)
Operation system	WINDOWS 7 / 10
Profile Laser	Visible, red-beam pilot laser for easy positioning of the workpiece
Electrical Connection	110 - 230 V (± 10%) 16 A, 50/60 Hz
Power consumed	500W
Dimensions	34”L x 34”W x 42”H 863mm x 863mm x1066mm
Weight (unpacked)	370 lbs
Warranty Coverage (Parts & Labor)	As Quoted
Laser Safety Compliance	FDA
Running temperature	15℃-35℃
